Technische FAQ



Wat is een Split-Gearbox ?

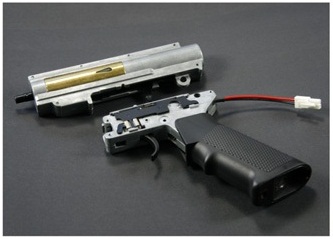

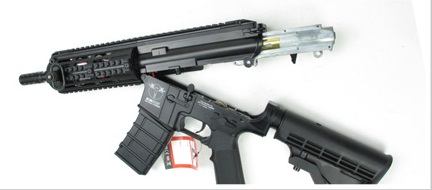

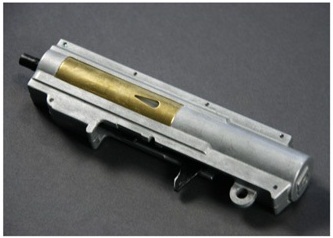

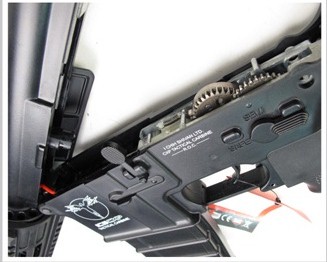

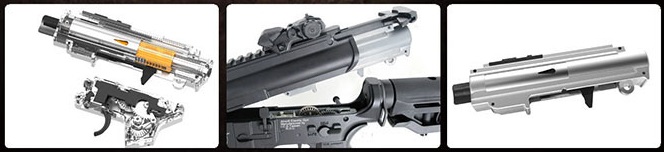

De Split Gearbox is een innovatieve uitvinding van ICS. Het basis principe van de standaard Versie 2 gearbox (Gezien in M4 replica's) is gespleten in twee delen. Het onderste gedeelte bevat de trigger assembly en gears, het bovenste gedeelte bevat de cylinder en piston parts. Het voordeel van dit systeem, is dat je de gearbox heel snel kan onderhouden, upgraden en repareren.




Compatibility schema:
UPPER GEARBOX
Non-Blowback Series
EBB Series (HOG, UK1, MK3 etc)
MARS Series
APE Series
Non Blowback Series
Compatible
Niet Compatible
Niet Compatible
Niet Compatible
EBB Series (HOG, UK1, YAK etc)
Niet Compatible
Compatible
Niet Compatible
Compatible*
MARS Series
Niet Compatible
Niet Compatible
Compatible
Niet Compatible
APE Series
Niet Compatible
Compatible*
Niet Compatible
Compatible
(*Bolt, nozzle en positioning block dienen omgezet te worden)

LOWER GEARBOX
Non-Blowback Series
EBB Series (HOG, UK1, MK3 etc)
MARS Series
APE Series
Non Blowback Series
Compatible
Niet Compatible
Niet Compatible
Niet Compatible
EBB Series (HOG, UK1, YAK etc)
Niet Compatible
Compatible
Niet Compatible
Niet Compatible
MARS Series
Niet Compatible
Niet Compatible
Compatible
Niet Compatible
APE Series
Niet Compatible
Niet Compatible
Niet Compatible
Compatible


Receiver Details:
Receiver Type
Hoogte
Thread
M4/UK1/HOG
46.9cm
M32 P=1.5
YAK
53.6cm
M32 P=1.5
MARS
52.6cm
M32 P=1.5



ICS Pistol valves

Pistol
Magazine Valve ICS nr.
Fill Valve ICS nr.
BLE-Alpha
AC-06A
AC-08A
BLE-XAE
AF-65
AC-08A
BLE-XFG
AC-06A
AC-08A
BLE-XPD
AC-06A
AC-08A
BLE-XMK
AC-06A
AC-08A
BLE-Vulture
AC-12
AC-08A
BLE-M9
AC-06A
AC-08A
BLE-PM2
N/A
AC-08A
BLE-Sar9
AC-11
AC-08A
BLE-Challenger (gas)
AC-12
AC-08A
BLE-Challenger (CO2)
AC-13
N/A
BLE-ICP
AC-11
AC-08A
